BASIC Reference 068

Insulated temporary buildings for warehousing and assembly

Protection class 5 | fully insulated. A Dutch company was looking for temporary additional storage space for its goods at very short notice. HALTEC realised the two insulated warehouses to the customer's complete satisfaction in just a few weeks.

Space gain
2,400 m²

Width
2x 20.00 m

Length
60.00 m

Side height
7.00 m

Ridge height
9.68 m

Snow load
1.40 kN/m²

Two large halls were needed quickly, but only temporarily, for the warehousing and assembly of wind turbines. HALTEC solved the problem in just ten weeks with insulated warehouses for rent. As the BASIC temporary buildings were only needed on a temporary basis, the HALTEC rental concept was the ideal alternative to buying the halls. At the end of the rental period, the customer has the flexibility to decide whether to return the hall or continue renting it. Thanks to the ground pegs anchoring, the warehouses can be dismantled almost residue-free at the end of the rental period.

HALTEC warehouses - protection class 5 | fully insulated

Thanks to their sandwich cladding in the roof and walls, the aluminium warehouses comply with protection class 5 | fully insulated. The fully insulated halls are particularly suitable for storing temperature-sensitive goods. The warehouses were clad with 60 mm thick sandwich elements to guarantee optimum thermal insulation.

Reference images and details

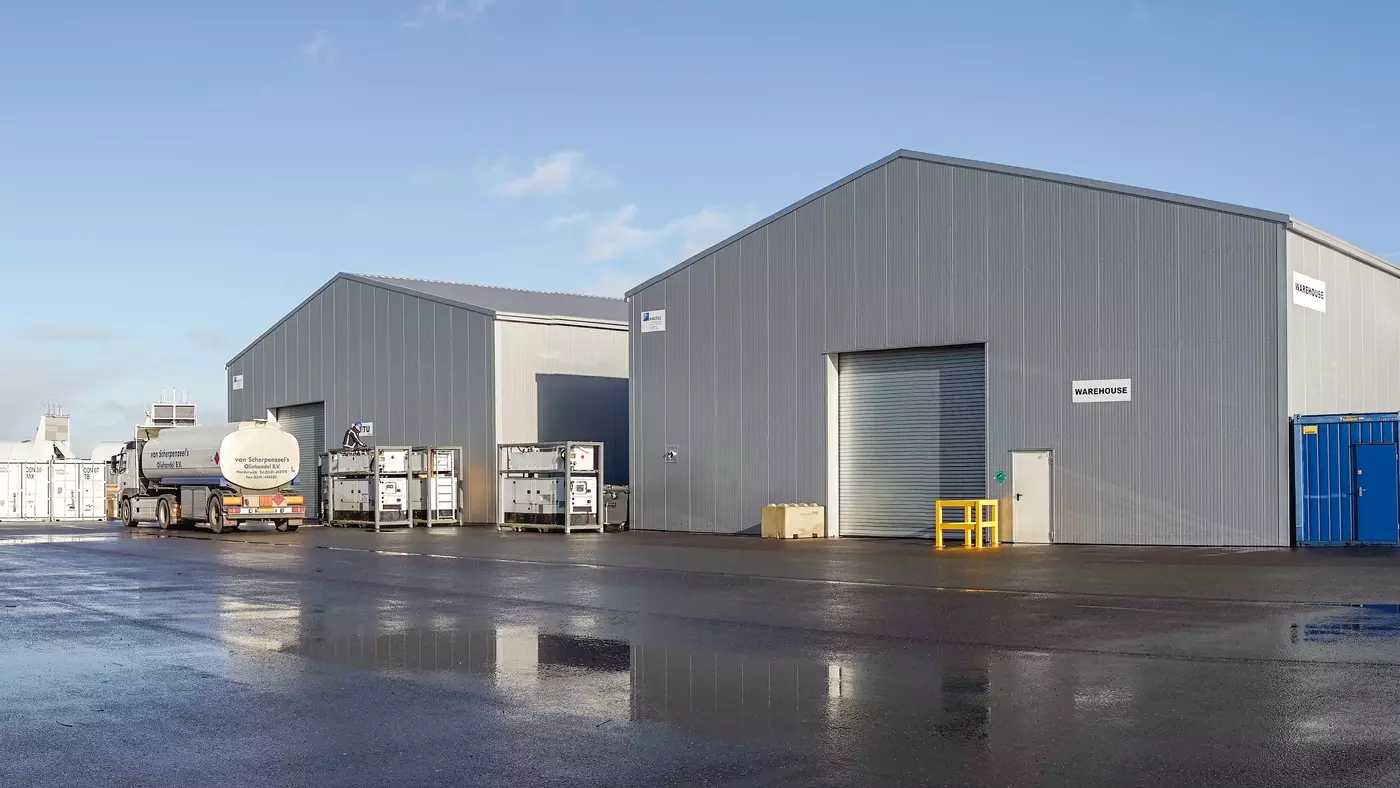

Insulated warehouses Netherlands

Temporary storage of goods

Thanks to the large HALTEC halls for rent, the Dutch company was now able to store its goods temporarily without any complications.

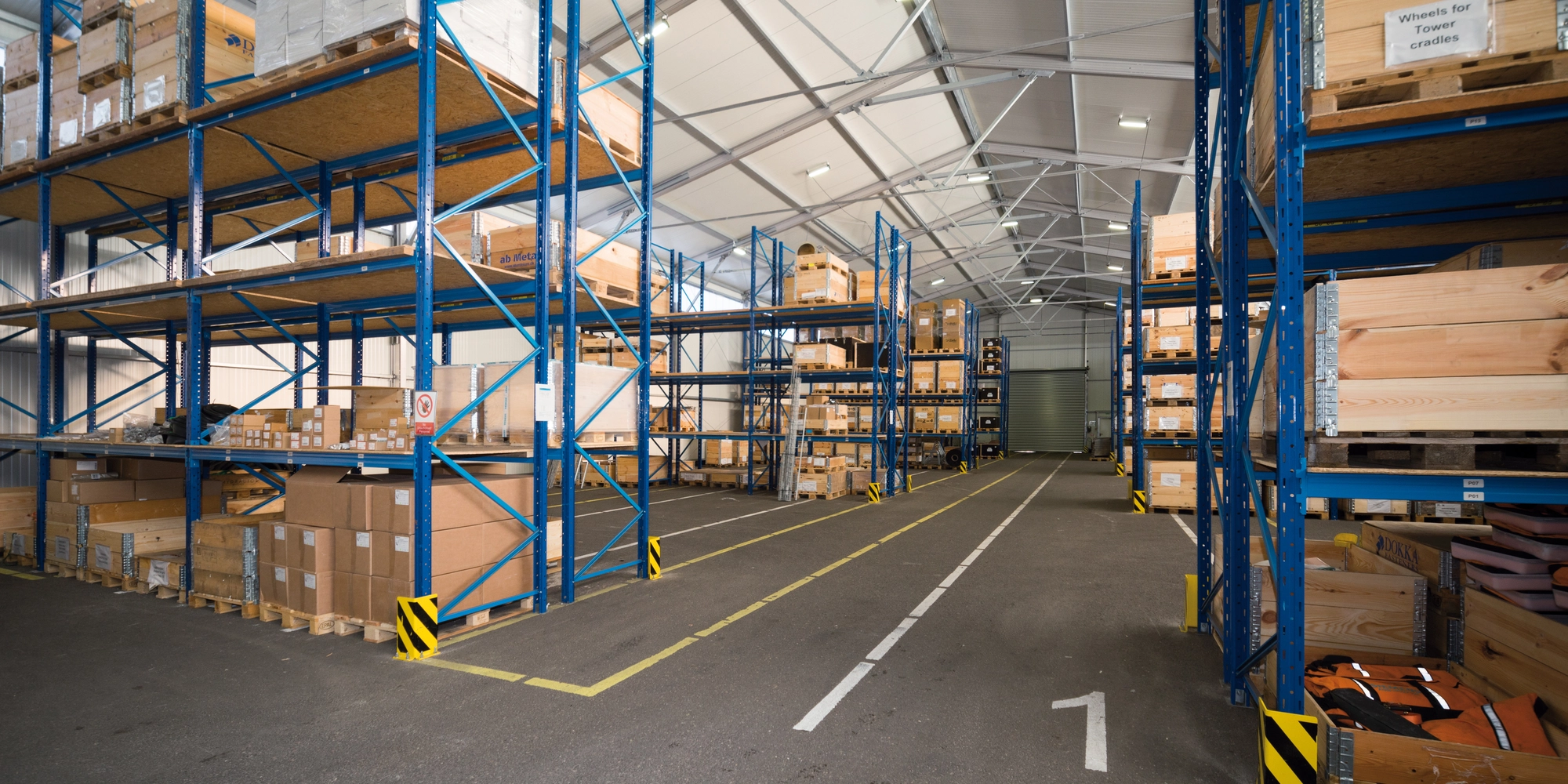

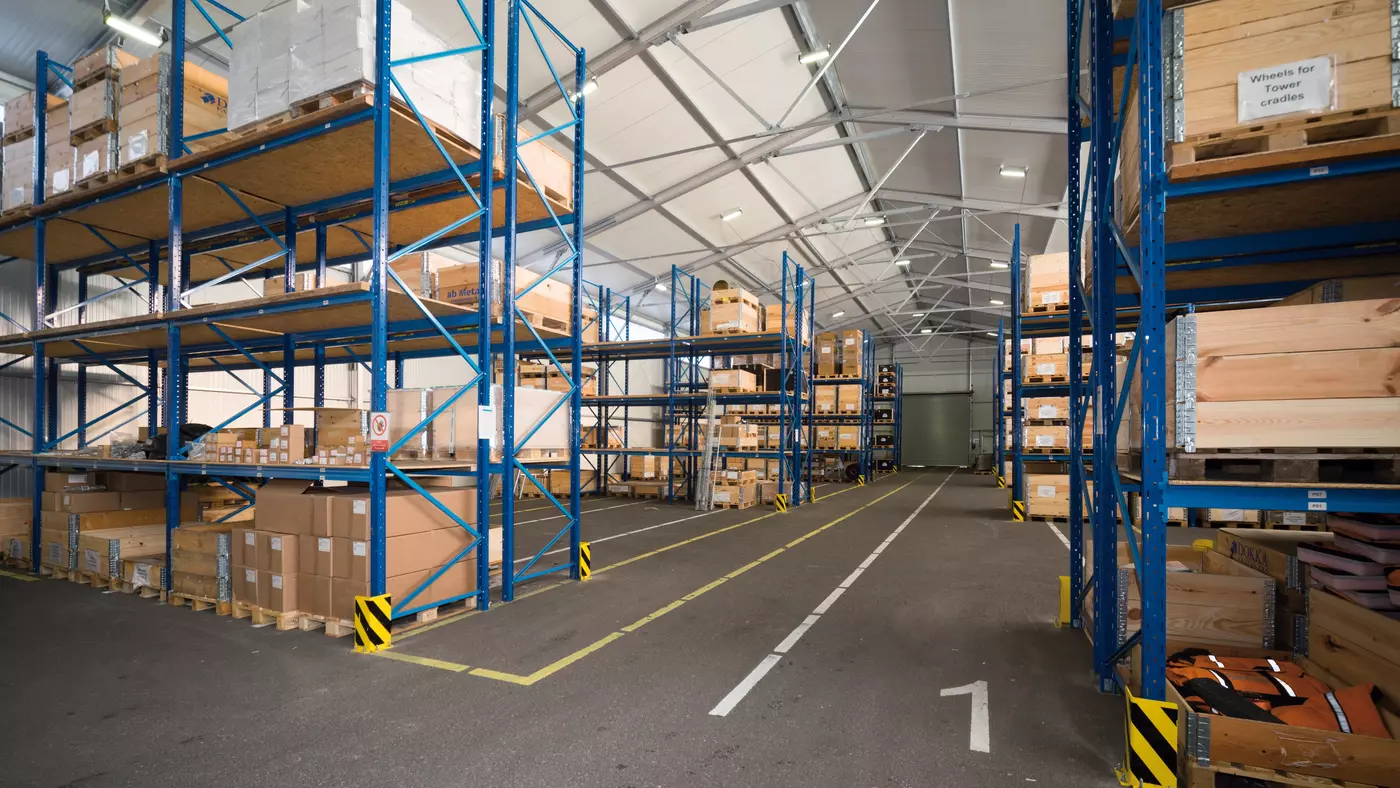

Lots of space gain

Thanks to a side height of 7.0 metres in the halls, there is now also enough space for large shelves.

High-bay warehouses

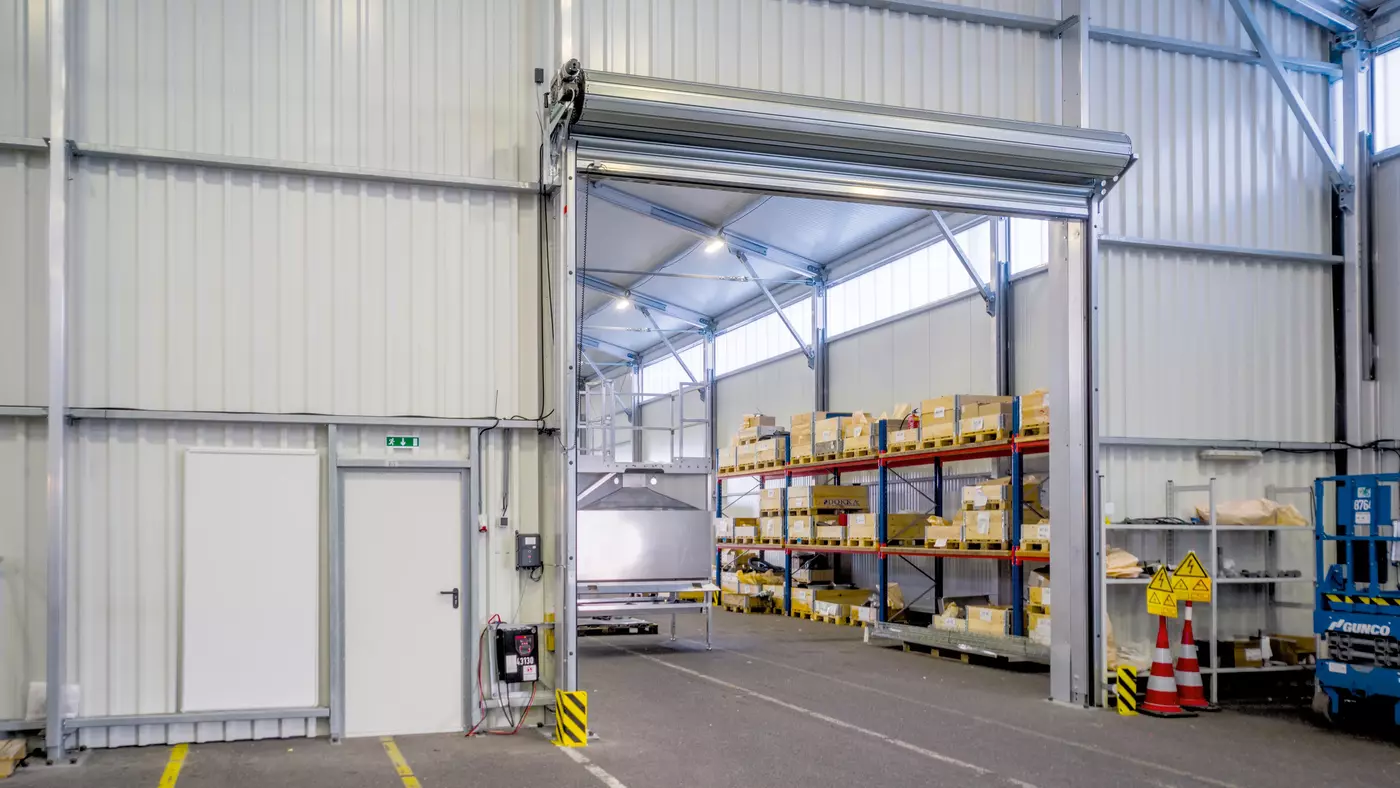

Partition wall with roller shutter gate

Optimum hall partitioning

The HALTEC halls are divided into storage and assembly areas by a partition wall with intermediate gates.

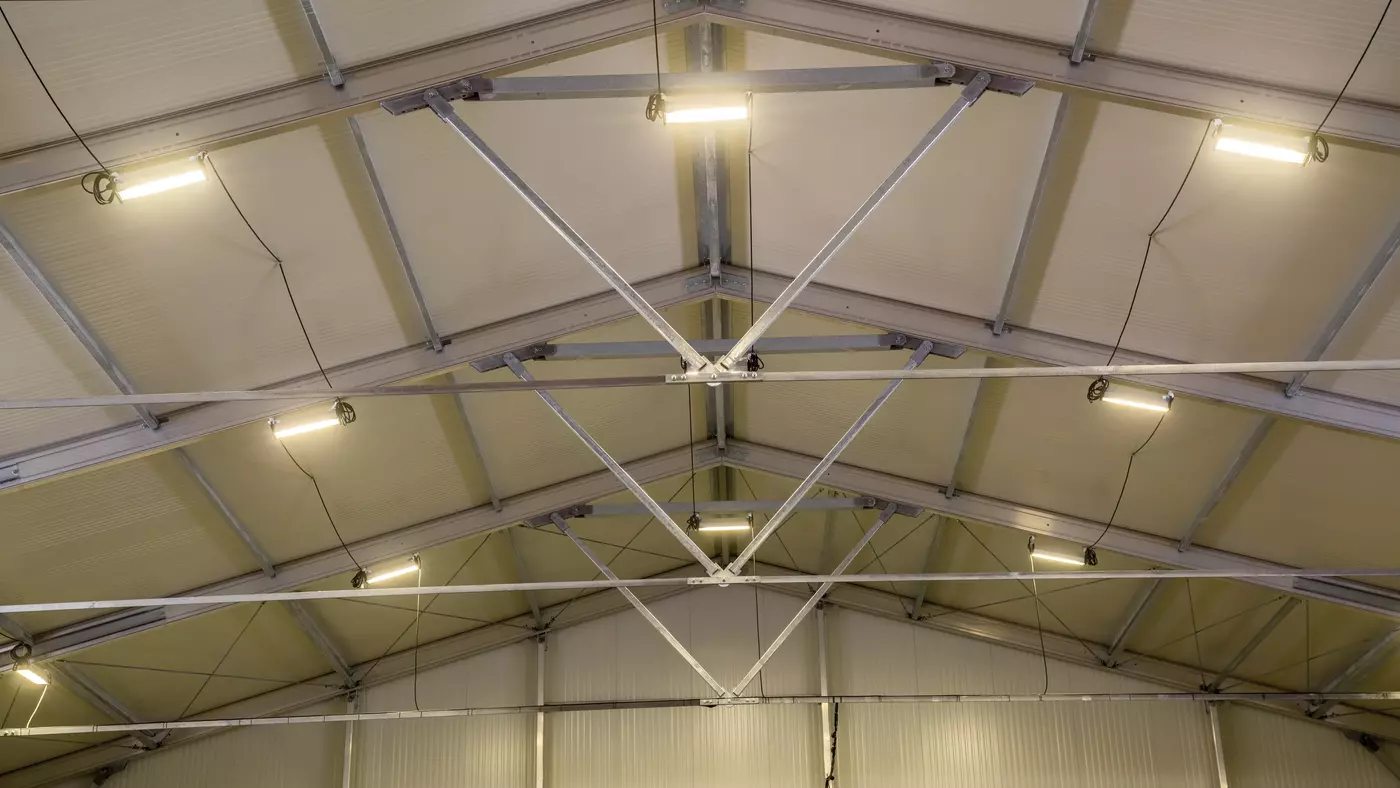

Mobile hall lighting

The plug-in lighting can be easily switched on if required.

Mobile hall lighting

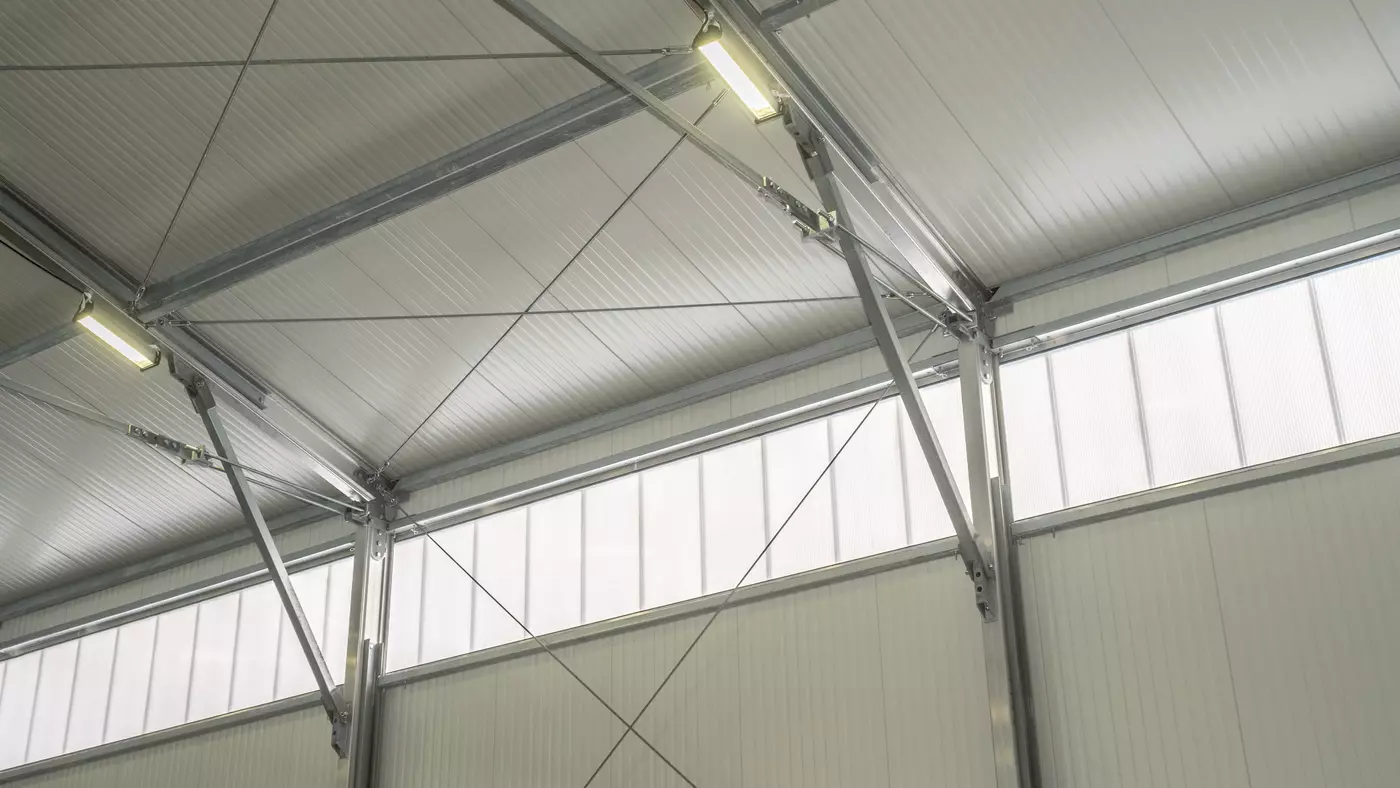

Wall-strip windows for warehouses

Flooded with daylight

The wall-strip windows below the eaves allow additional daylight into the hall.

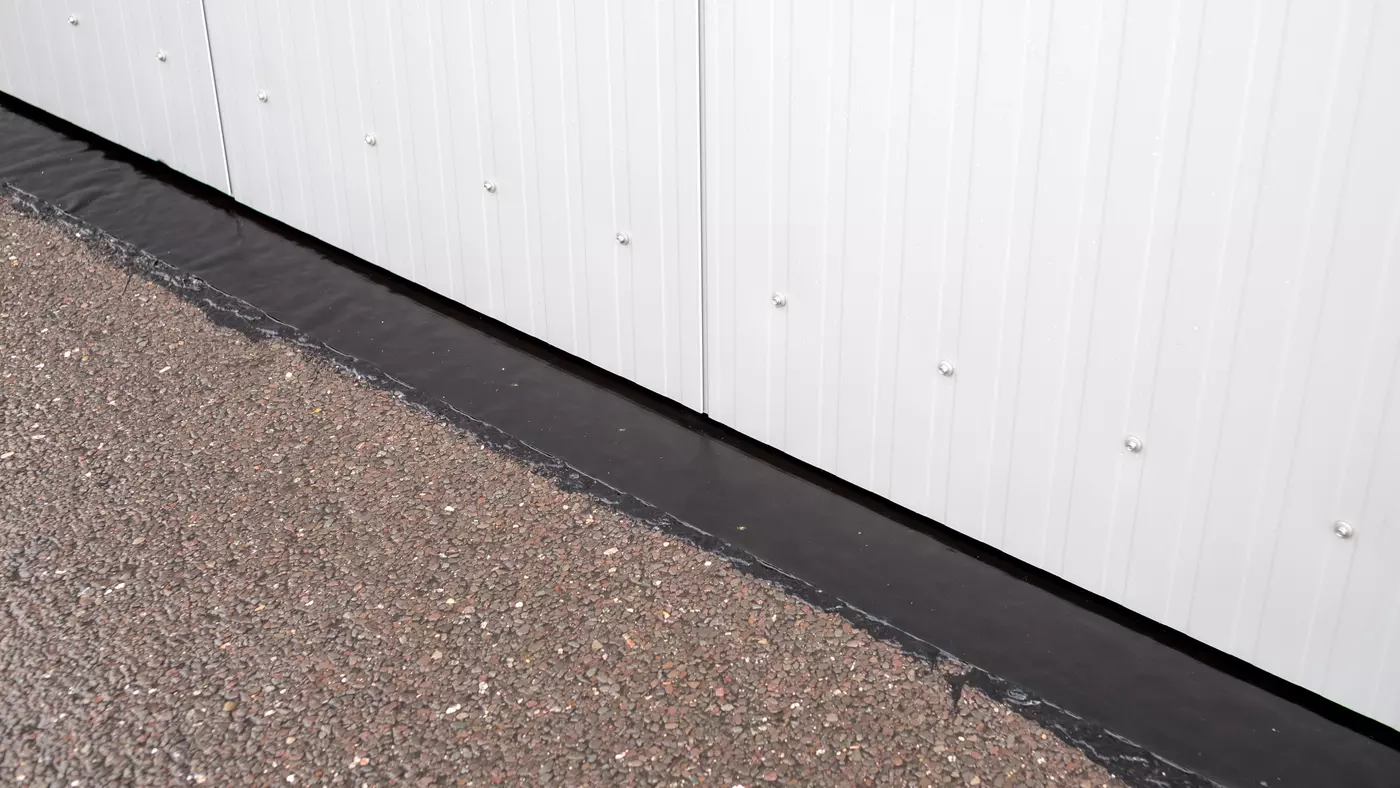

Proper floor connection

A floor connection with bitumen sheeting is particularly suitable for rental halls.

Floor connection as bitumen sheeting

Well advised. HALTEC.

Building a hall raises many questions. Our online guide has detailed answers for you.

Find out how you can erect temporary buildings without foundations using soil nails. What you need to consider when obtaining approval for temporary buildings and which types of foundations are suitable if the temporary building is to be anchored with heavy-duty anchors. We also explain how temporary buildings can be moved on rails or attached without anchoring using ballast only.
