SELECT Reference 142
Insulated steel building as a warehouse for cardboard boxes
A cardboard packaging manufacturer from Thuringia needed more storage space for its products. Economic efficiency was a particular focus, so a simple HALTEC SELECT steel building without any frills was the ideal solution.
The cardboard packaging manufacturer was particularly keen to store its moisture-sensitive goods in a dry place, protected from the weather. The warehouse was therefore clad all round with 60 mm sandwich panels. This keeps heat, cold and moisture outside. Inside, the insulation also protects against condensation.
Three large roller shutter gates with radio remote control, four doors and five skylight domes round off this 2,044 m² steel building. In the event of fire, the NSHEVS system ensures smoke and heat extraction. During maintenance work on the roof, installed fall-through protection ensures greater safety.
The simple warehouse is anchored with pegs driven directly into the ground. This anchoring method saved the customer from having to construct expensive concrete foundations. A bitumen sheet on the floor forms a cost-effective floor connection for the hall.
Reference images and details

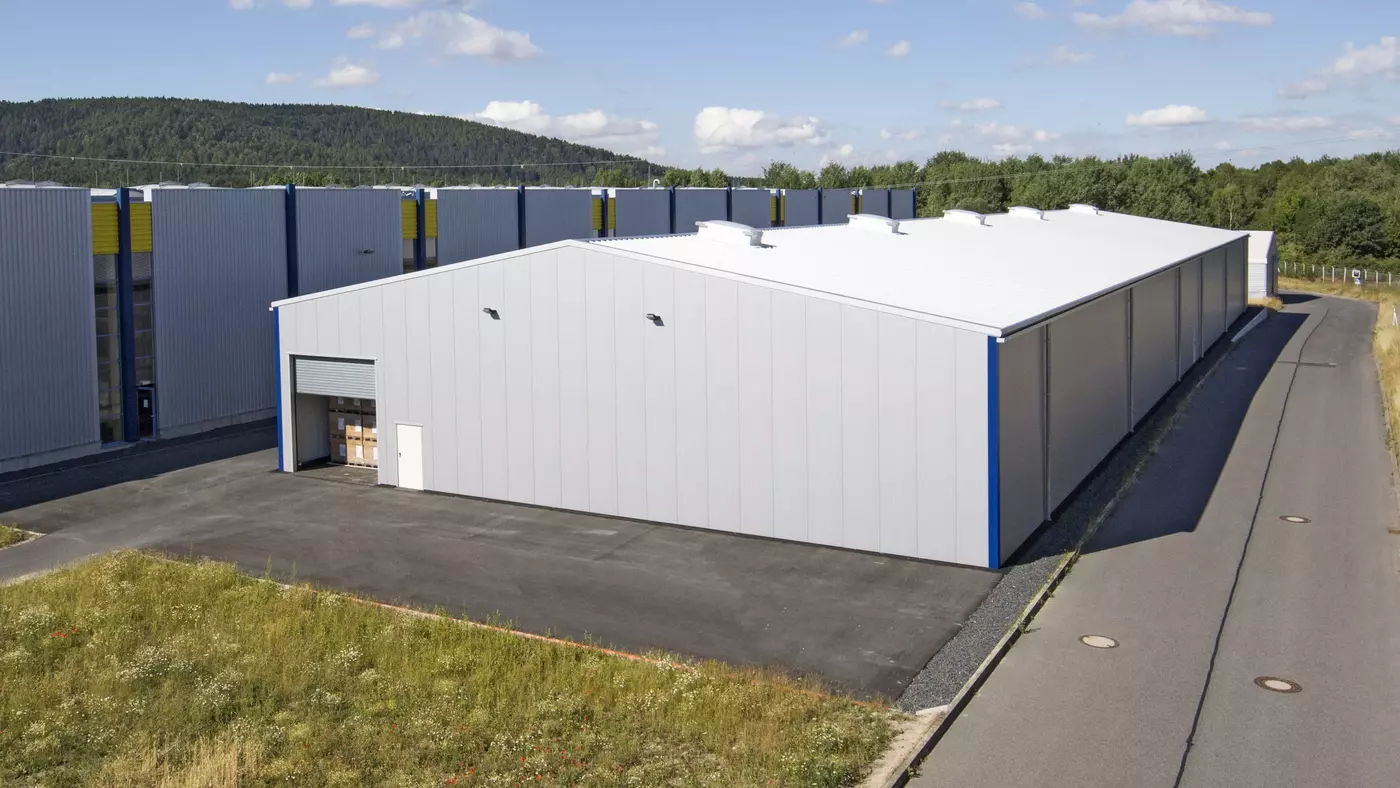

Particularly economical
The 2,044 m², simple warehouse was assembled on an existing area without foundation work.

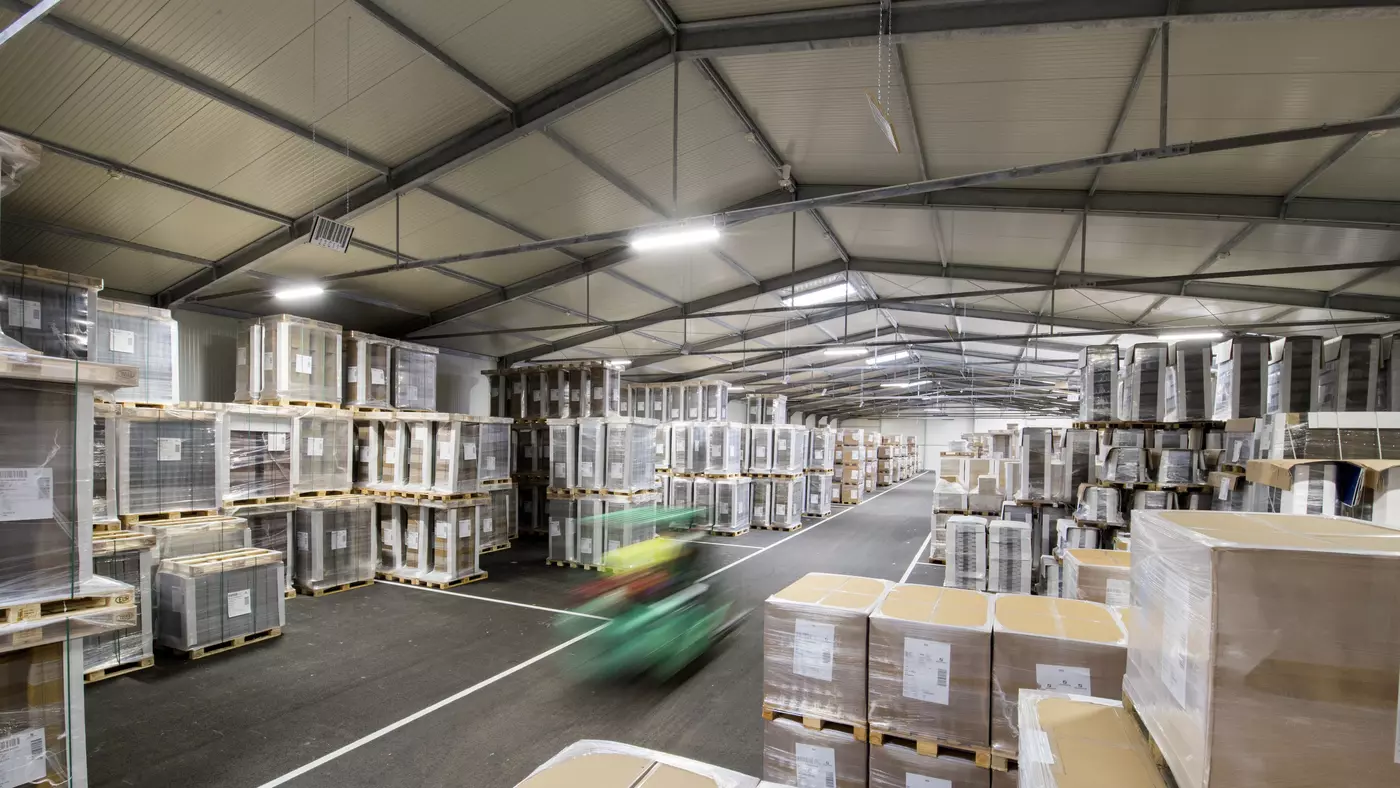

Spacious storage room
The hall is over 80.0 metres in length and 6.0 metres high, offering plenty of space gain for goods storage.

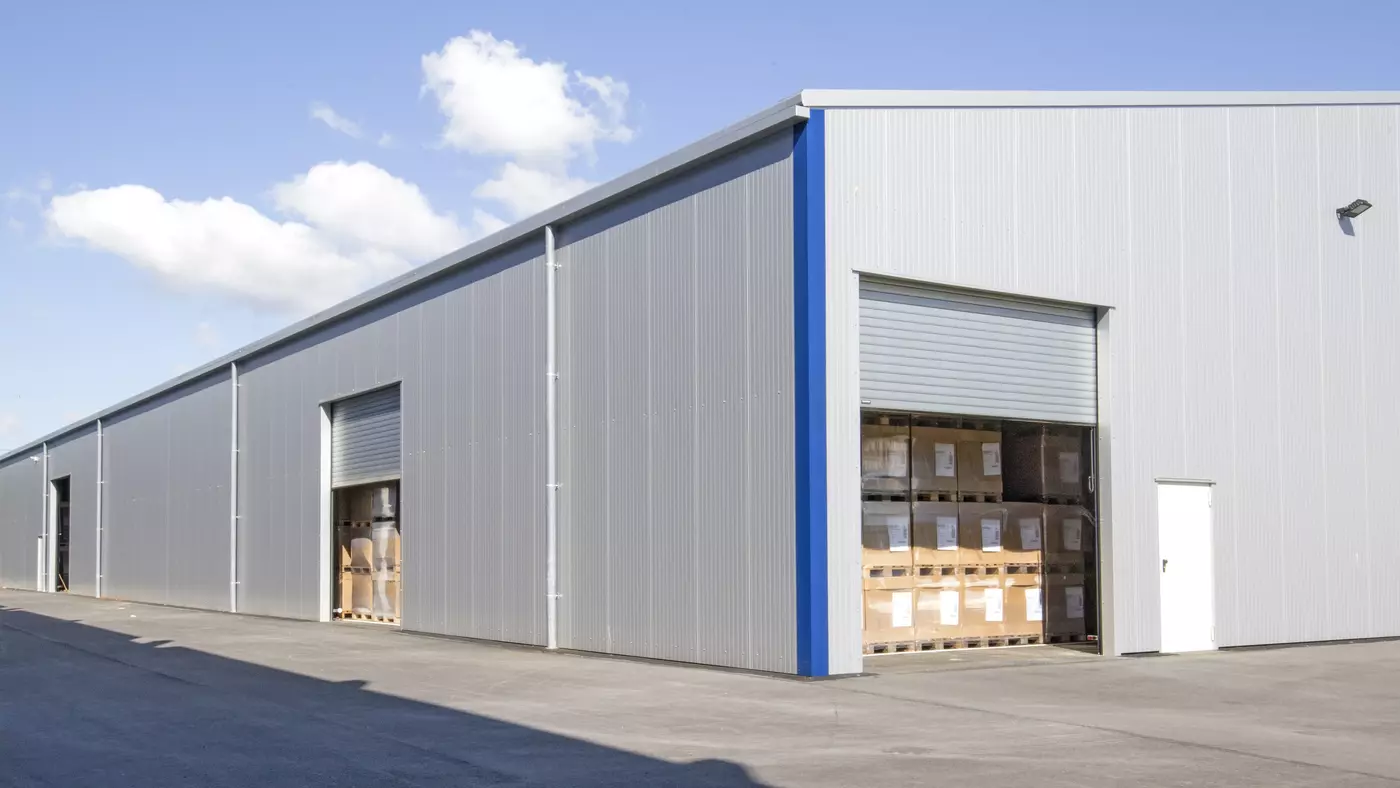

Practical hall entrances
A total of three roller shutter gates with radio remote control provide access to the hall.

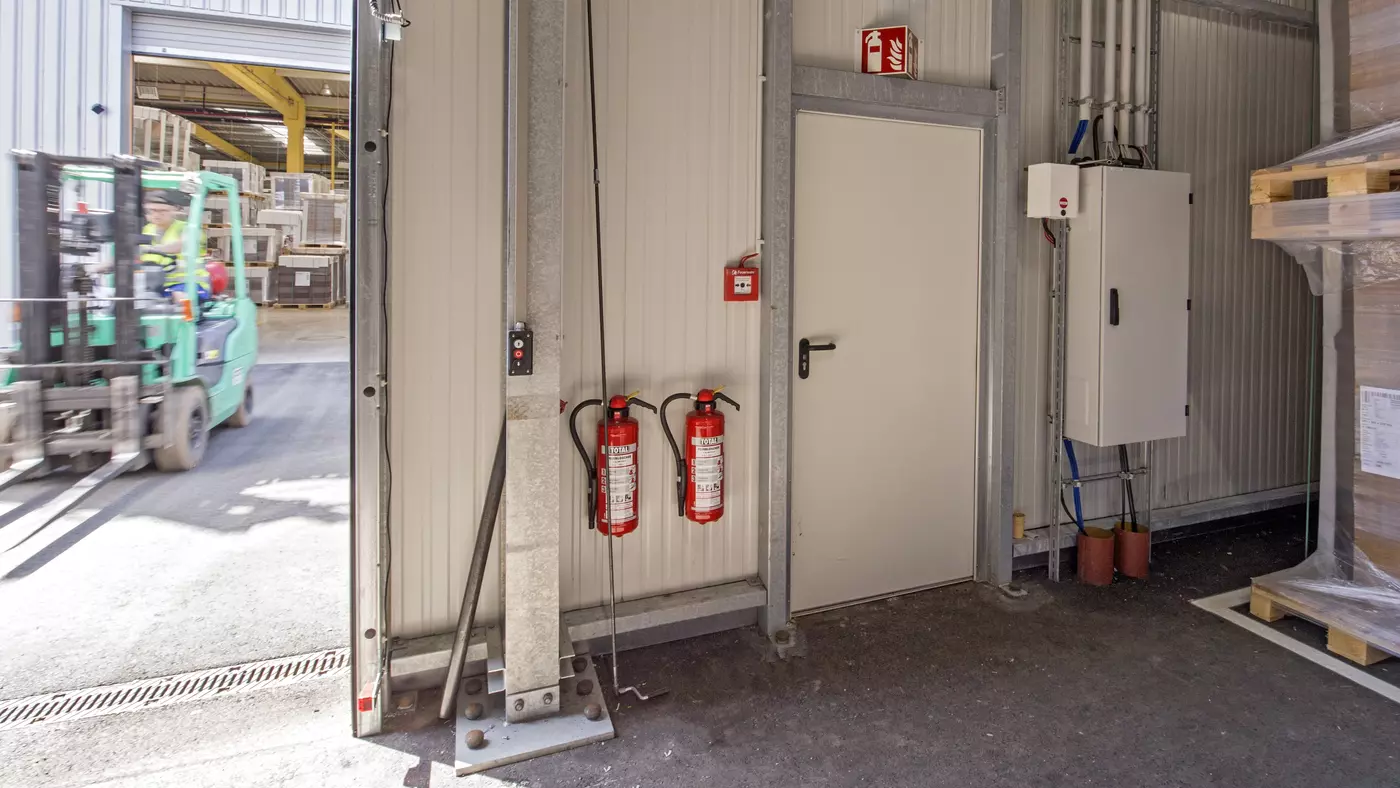

Safe passenger transport
The pedestrian and escape door next to the roller shutter gate ensures the safety of employees.

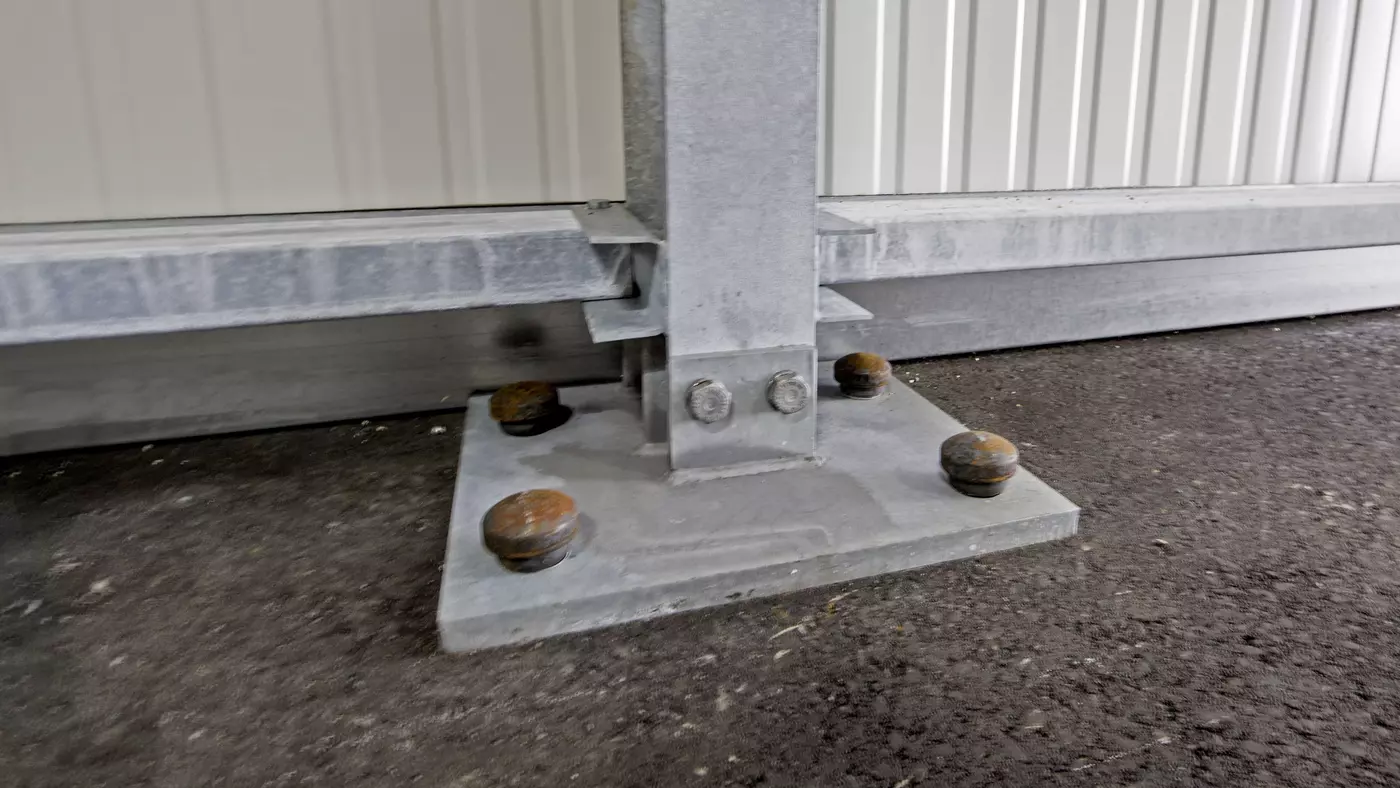

Cost-effective anchoring method
The warehouse was mounted on an existing surface using ground nails without the need for expensive foundations. This saves money and is also particularly quick.
