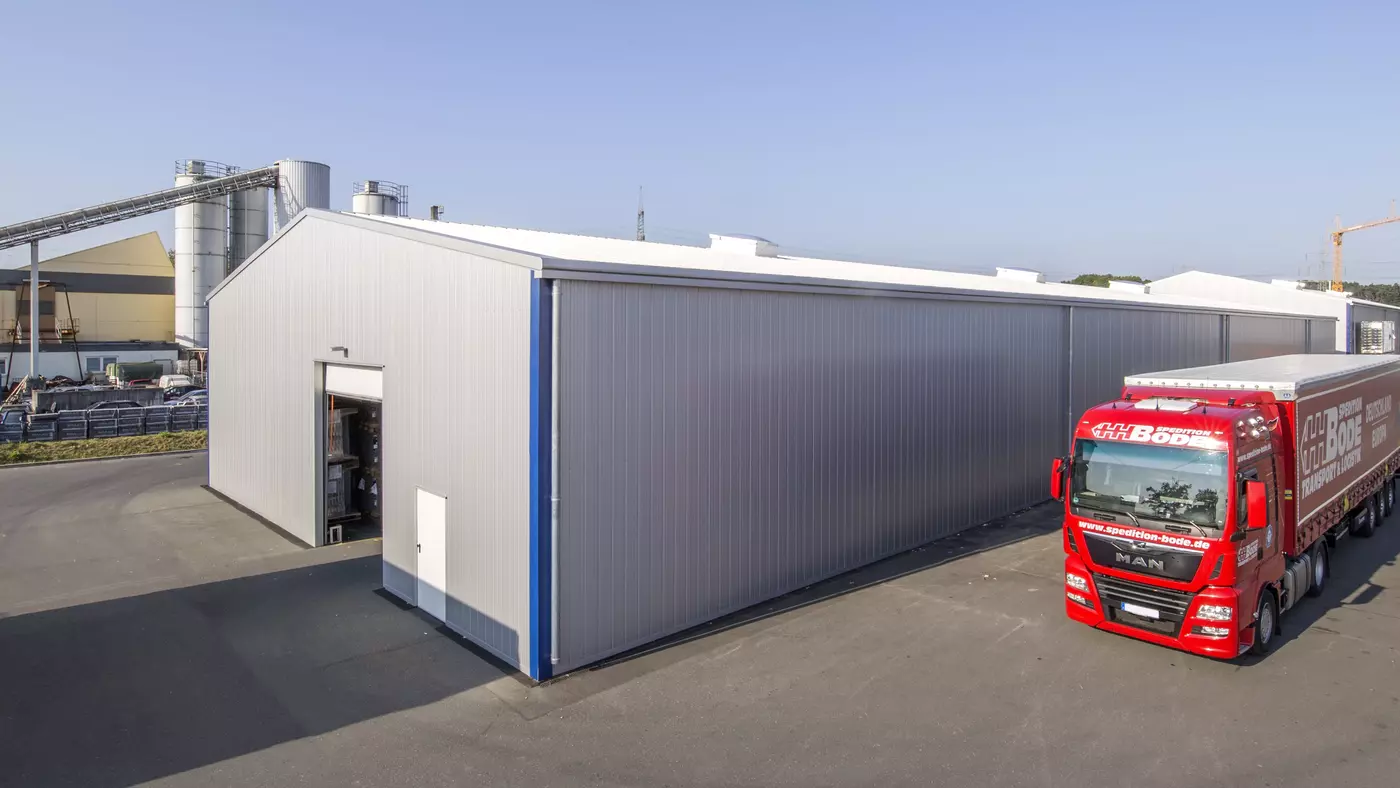

Warehouse on a site with a large slope
A company from Franconia needed a new warehouse for its paper and cardboard products. The challenge here was that the available ground had a height difference of 1.28 metres. HALTEC mastered the task with flying colours.
To prevent the hall from leaning, the length of each steel support was individually adjusted. The steel structure was thus harmonised with the sloping terrain. The hall was anchored with soil nails. This saved the customer time-consuming and expensive earthworks and foundation work.
Condensation protection was a particular focus for the hall cladding. The sandwich panels installed in the roof and walls prevent condensation from forming thanks to their insulation. Dry warehousing of moisture-sensitive goods is thus guaranteed at all times.
Further equipment features
Two industrial sectional gates, two doors with escape door fittings, three roof light domes, an LED lighting system and 40.0 metre-long wall-strip windows complete the warehouse perfectly. A bitumen sheet with a cover plate at the base serves as a simple and cost-effective floor connection. This floor connection is ideal for larger unevennesses and height differences.
Reference images and details

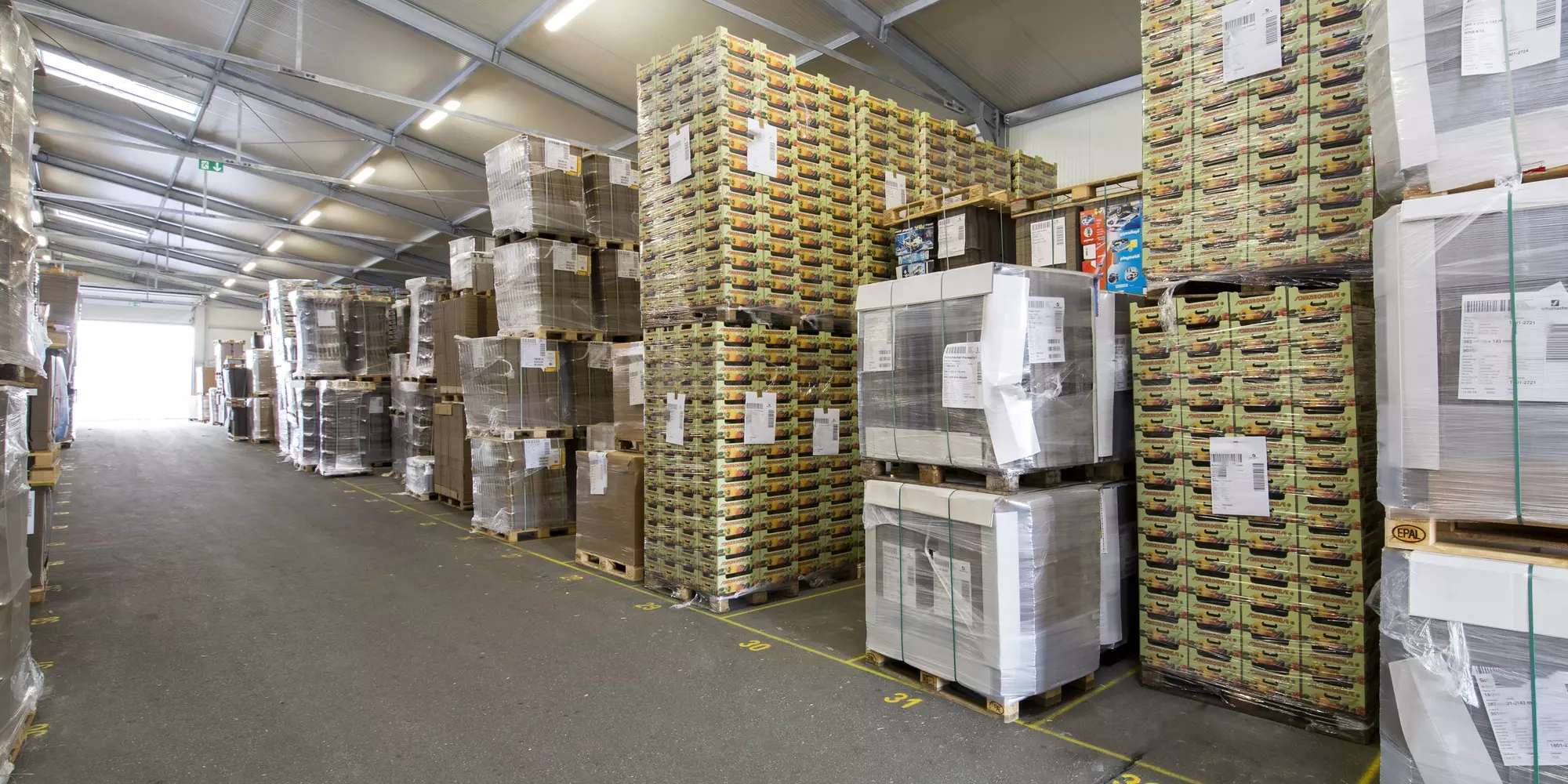

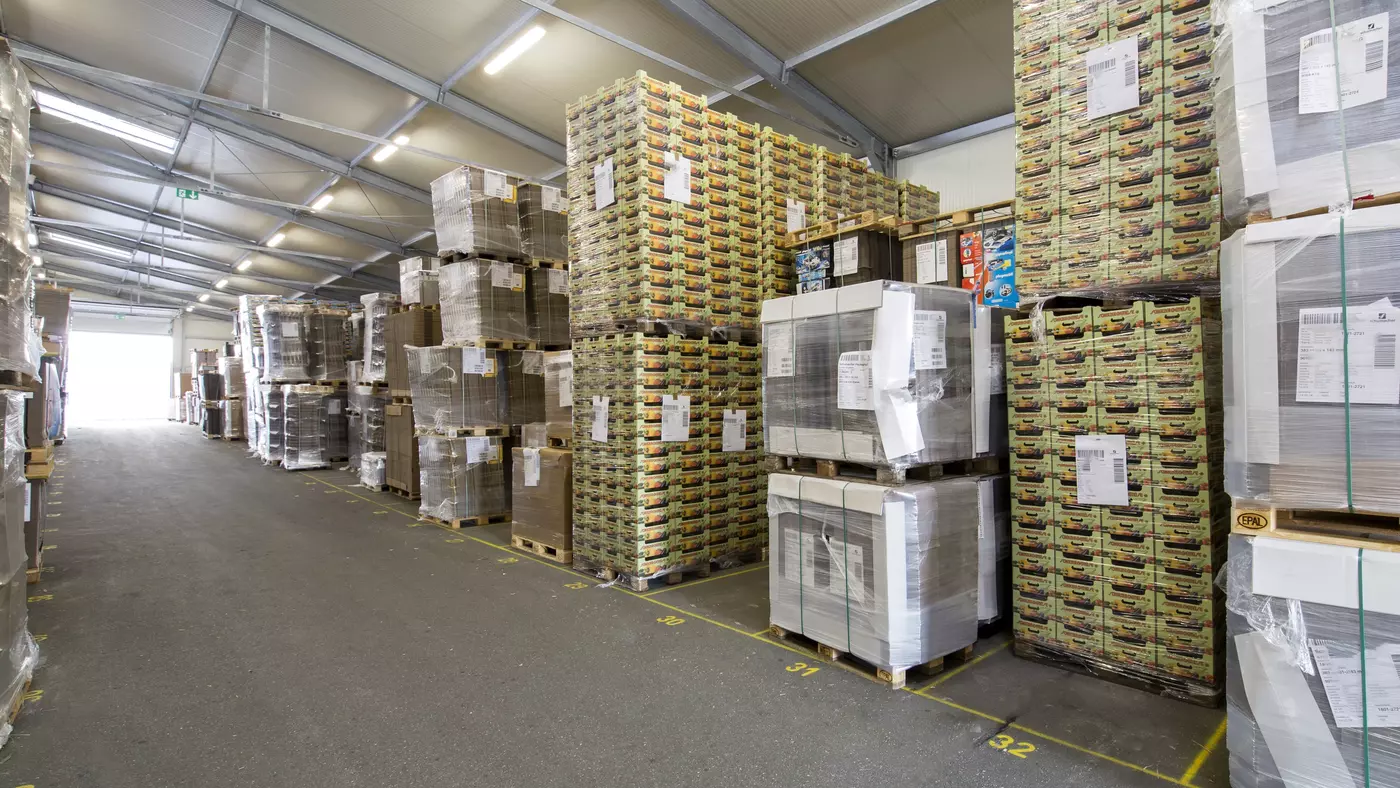

Lots of space gain
In total, the new warehouse has created a space gain of over 1,200 m².
Dry at all times
The insulating sandwich panelling regulates the temperature and prevents dripping condensation.

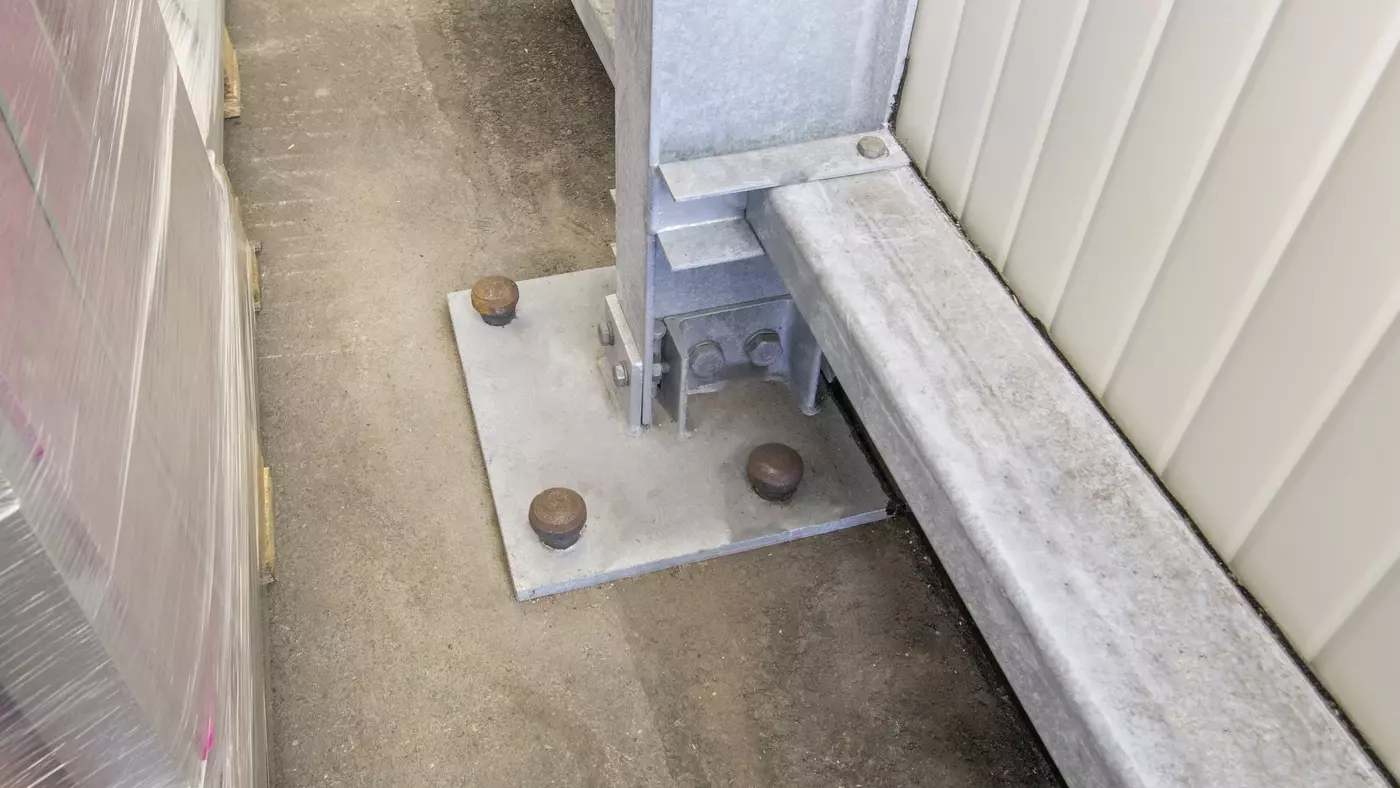

Foundation-free anchoring
The ground pegs anchoring saves foundation costs and ensures almost residue-free dismantling.

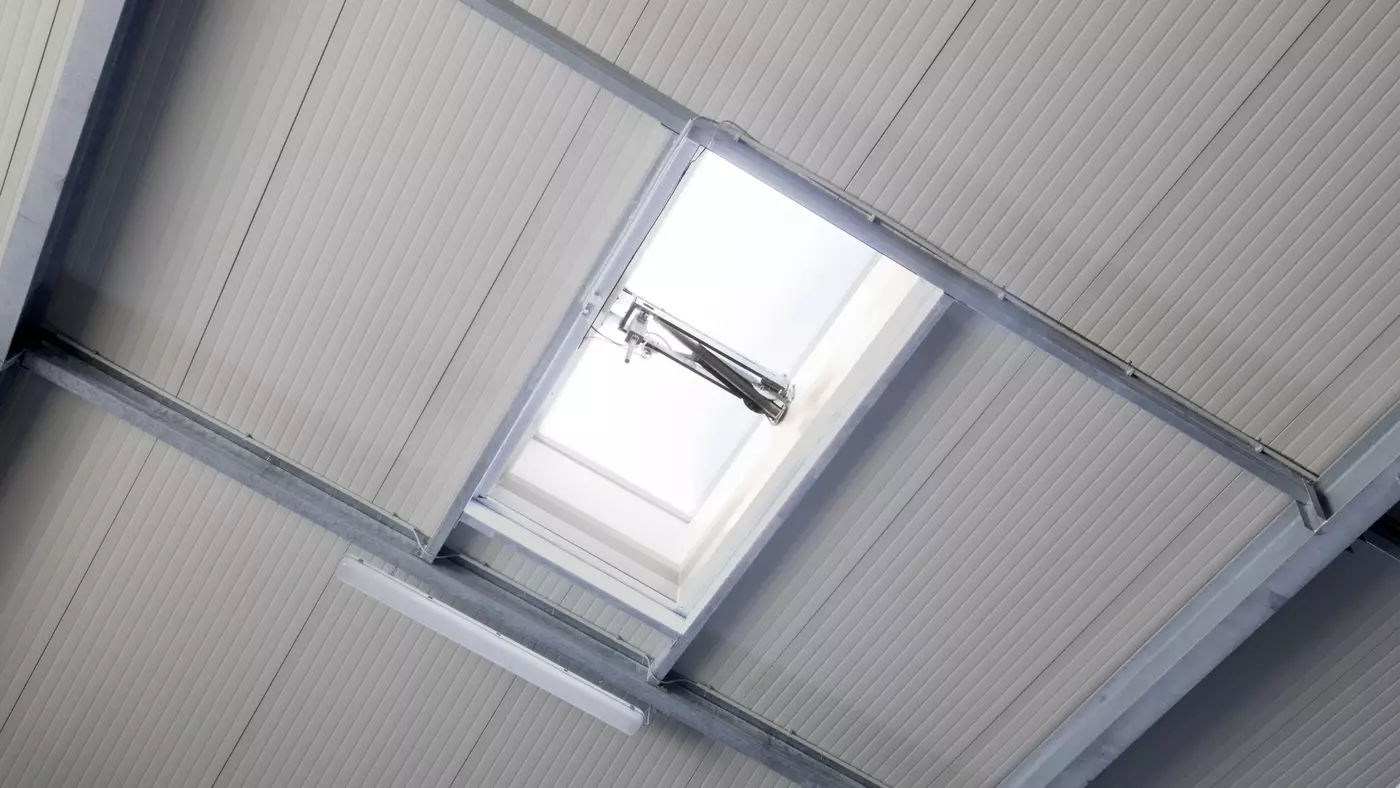

Safety in case of fire
Three skylight domes with SHEV function provide the necessary smoke and heat extraction in the event of a fire.

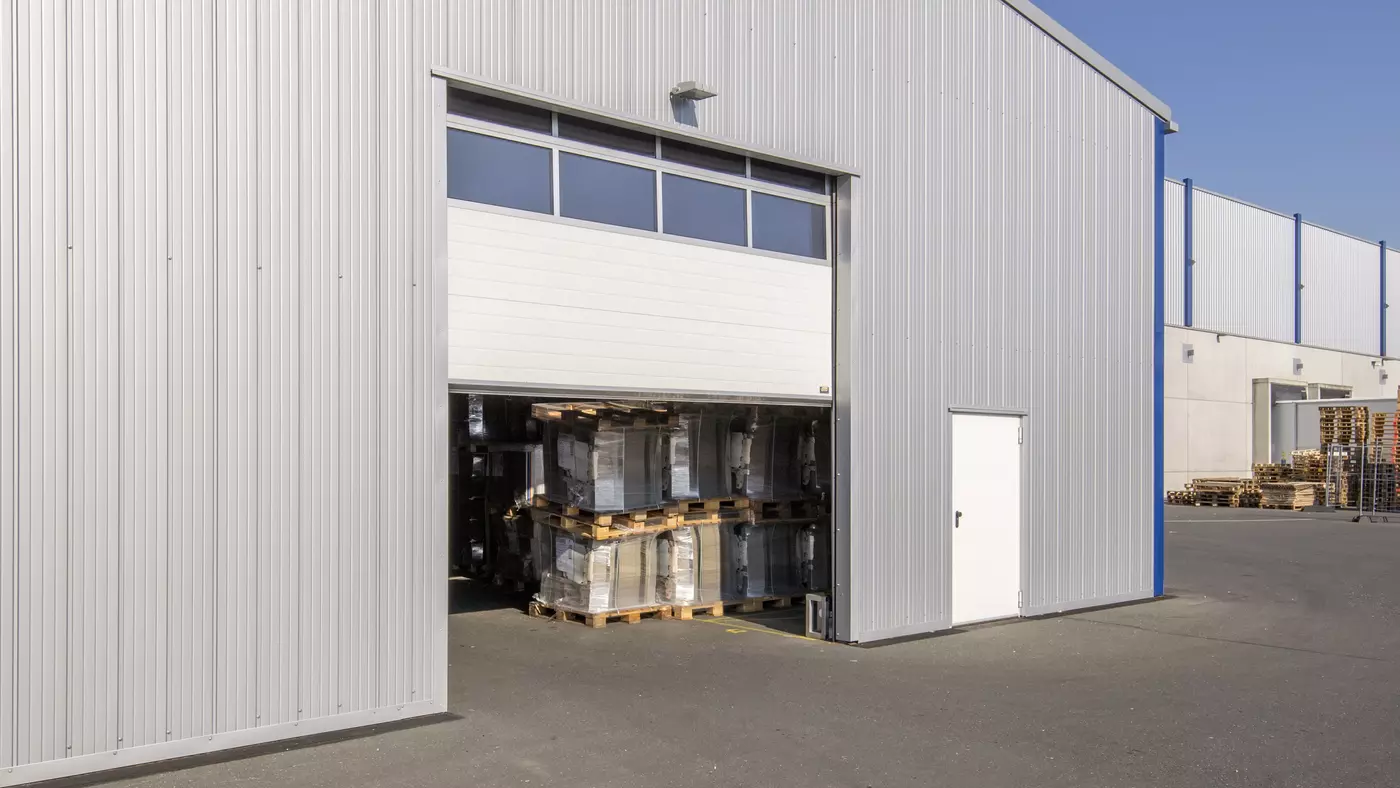

Well thought-out accesses
An electric roller shutter gate with window sections allows additional light into the hall. An adjacent escape and pedestrian door is available for employees.

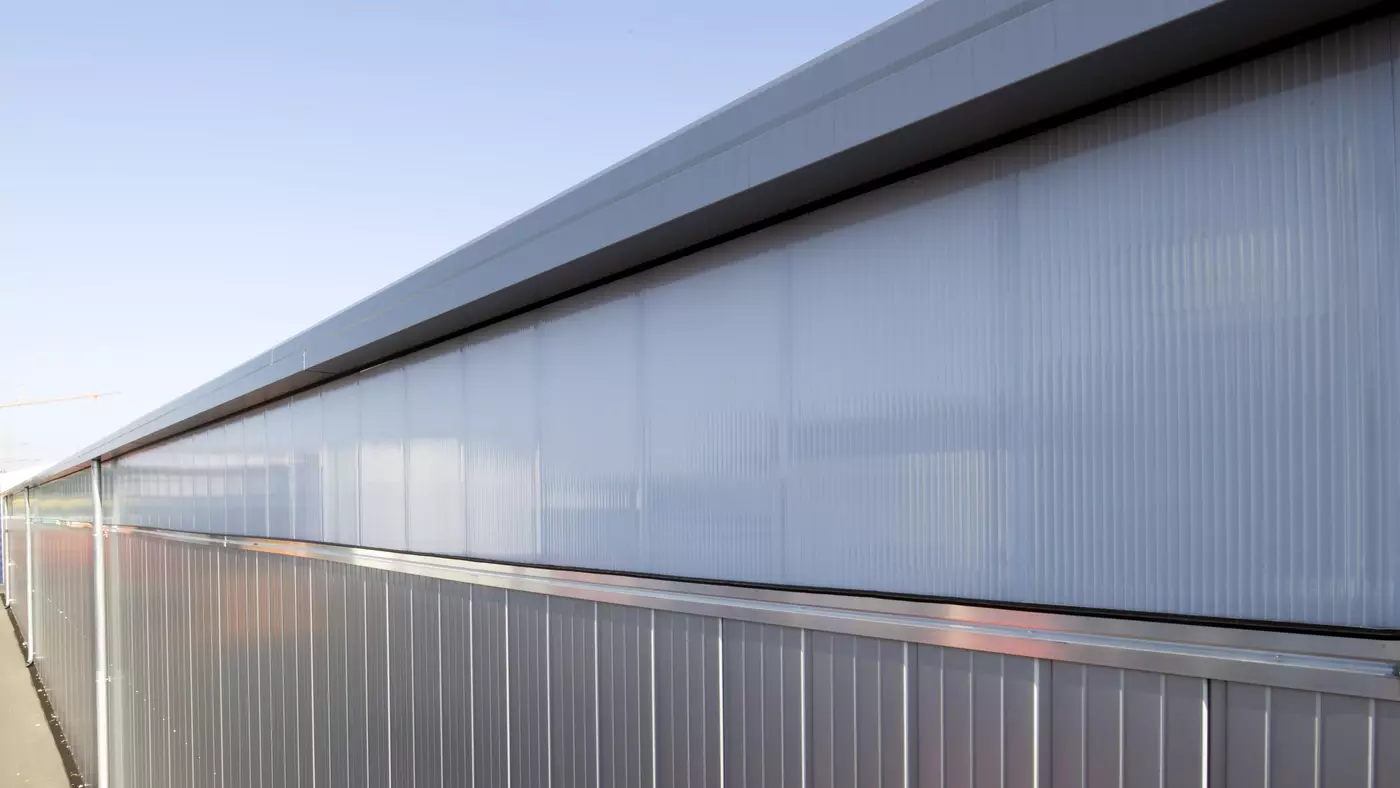

Natural lighting
A 40.0 metre-long wall-strip windows allows plenty of daylight into the hall and provides natural lighting.

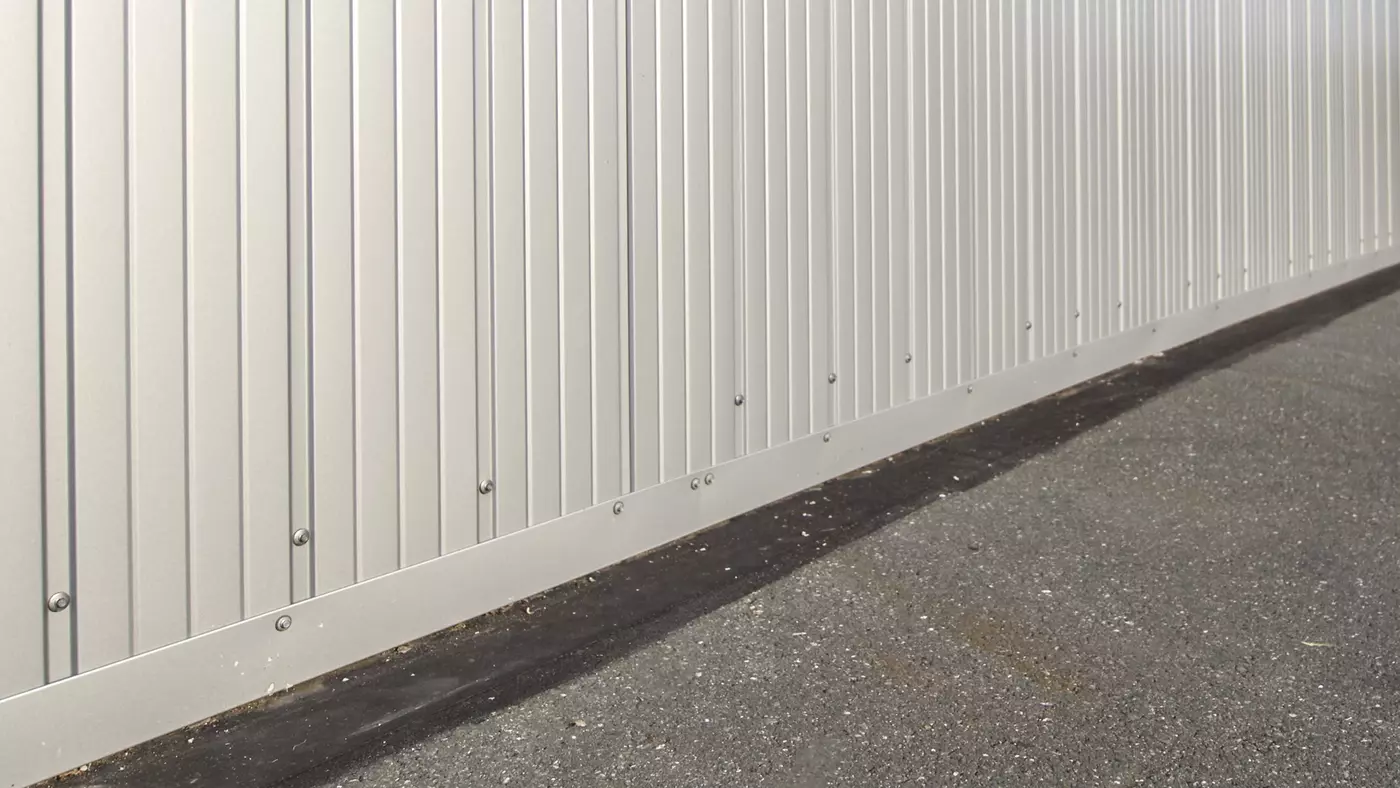

Functional floor connection
The bitumen sheeting serves as a simple and cost-effective floor connection that also looks neat.
